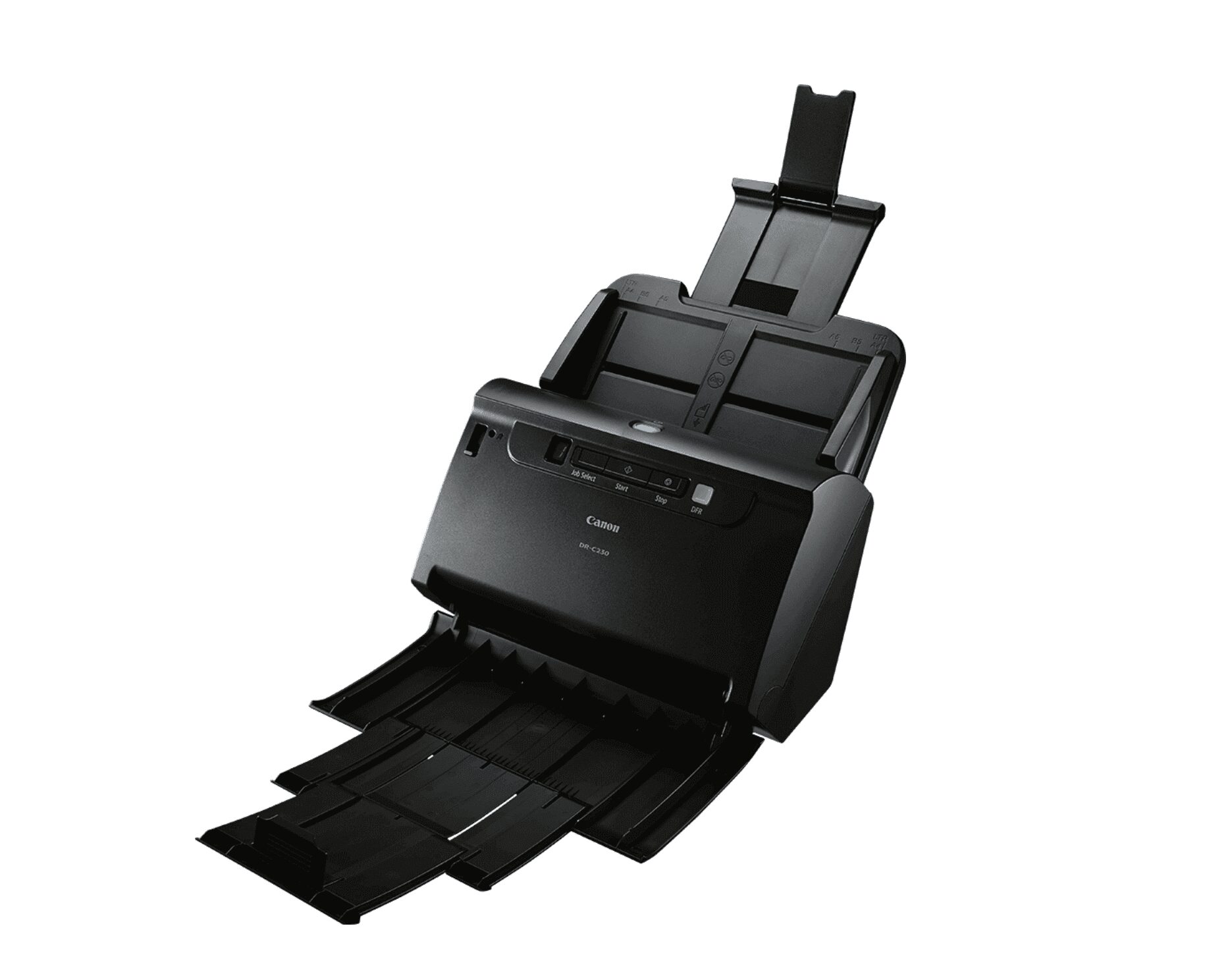

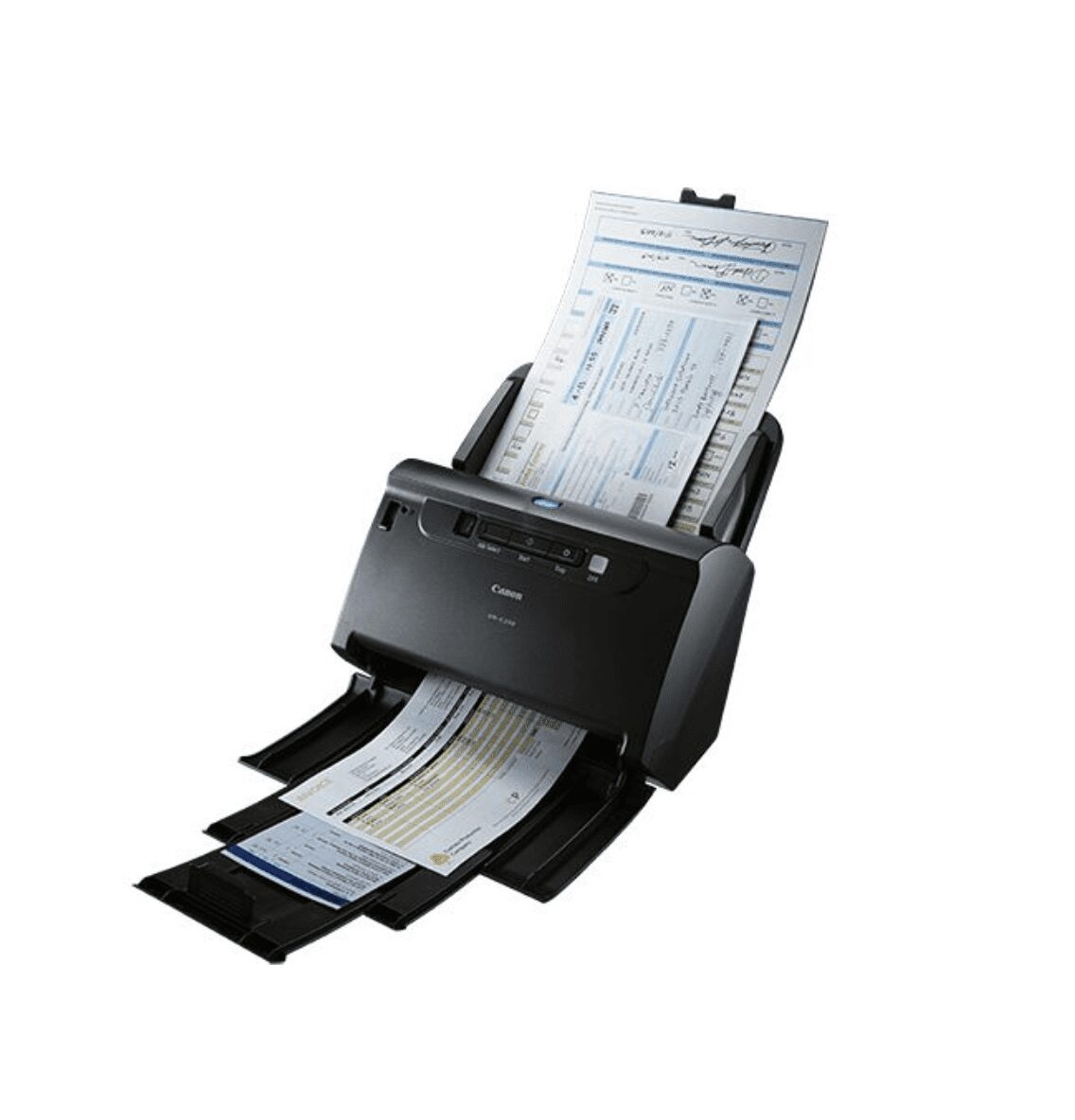

Canon imageFORMULA DR-C230 scanner
The Canon imageFORMULA DR-C230 scanner is an affordable, compact scanner with a rang eof unique features, such as the J-Path document feed system. At home in any busy environment, and takes up very little desk space thanks to having the smallest footprint of any scanner in its class.
A fantastic document scanner for an office setting.
Product Description
Canon imageFORMULA DR-C230 scanner Detailed Features
Compact profile, unique design
Combining unique design and innovative features, the DR-C230 offers affordable scanning without compromising on performance. Its vertical J-Path transport system means the DR-C230 has the smallest footprint in its class. The DR-C230 can be placed directly abutting a rear wall or on a counter-top where space is limited. Thick or embossed cards can be scanned with ease thanks to a straight through paper path option that makes the DR-C230 extremely versatile.
Fast and reliable scanning
The DR-C230 offers impressive scanning colour speeds up to 25ppm (or 50 images per minute in duplex), while reliable paper handling is assured thanks to Ultrasonic Double Feed Detection.
Easy operation, superb results
The DR-C230 is packed with innovative features to help make the scanning process easier for users. CaptureOnTouch incorporates a Full Auto Mode function that automatically applies the best settings based on document content. With simple one-touch scanning, operation complicated tasks can now be completed in a few seconds. Another innovative feature of the DR-C230 is the ‘face-up’ document feeding option, which allows users to feed documents in their natural orientation to save valuable time.
Redesigned CaptureOnTouch
CaptureOnTouch has been redesigned with a streamlined user interface for a more intuitive scanning experience. Users can quickly convert their paper documents to multiple file formats (PDF, TIFF, JPEG, BMP and PowerPoint) and can also scan documents directly into SharePoint or Evernote. For a simple document filing solution, use CaptureOnTouch – and create searchable PDF documents that enable easy text-based search and retrieval. Documents can also be scanned to PDF/A files – the standard format for long-term archiving.
Powerful and versatile software
The DR-C230 comes with a powerful range of ‘out of the box’ software that will enable users to work more efficiently. Along with CaptureOnTouch; Bizcard, OmniPage, Paperport, eCopy PDF Pro Office and PageManager (Mac) are all included to help increase productivity.
Scan to the cloud
Scan direct to the cloud-based data management service, Evernote. The CaptureOnTouch software includes a job button that scans and sends data directly to Evernote servers. Information can then be retrieved using your mobile smart phone or PC from anywhere around the world.
BENEFITS
Canon imageFORMULA DR-C230 scanner Benefits
- Slim, compact design with unique vertical J-Path feeding
- Simple and easy scanning thanks to intuitive features
- High speed duplex scanning: up to 25ppm at 300dpi
- Full software pack for all your scanning needs
- Hybrid model for Mac and Windows users
Technical Specification
General Product Information
| Type | Desktop Type Sheet Fed Scanner |
|---|---|
| Scanning sensor unit | CMOS CIS 1 Line Sensor |
| Optical resolution | 600dpi |
| Light source | RGB LED |
| Scanning side | Front/ Back/ Duplex |
| Interface | High speed USB 2.0 |
| Dimensions (WxDxH) | Tray Closed: 300 (W) x 156 (D) x 217 (H)mm Tray Opened: 300 (W) x 235 (D) x 336 (H)mm |
| Weight | Approx. 2.6kg |
| Power requirements | AC100 – 240V (50/60Hz) |
| Power consumption | Scanning: 12.8W or less, Sleep mode: 1.9W or less, Power tuned off: 0.5W or less |
| Operating environment | 10 – 32.5 °C (50 – 90.5 °F), Humidity: 20 – 80% RH |
| Environmental compliance | RoHS and ENERGY STAR |
Scanning Specifications
| Black and White | 25ppm/50ipm |
|---|---|
| Colour | 25ppm/50ipm |
| Output resolution | 150 x 150dpi, 200 x 200dpi, 300 x 300dpi, 400 x 400dpi, 600 x 600dpi |
| Output mode | Binary: Black & White, Error Diffusion, Advanced Text Enhancement I, Advanced Text Enhancement II (Advanced Text Enhancement I not available with MAC Driver), Auto Colour Detection, 8-bit Greyscale:(256-Level), 24-bit colour |
| Suggested Daily Duty Cycle | Approx 1,500 scans/day |
Document Specifications
| Width | J-Path 50.8 – 216mm Straight Through 50.8 – 216mm |
|---|---|
| Length | J-Path 70 – 356mm Straight Through 53.9 – 356mm |
| Thickness | J-Path 0.06 – 0.15mm (52 – 128g/m²) Straight Through 0.05 – 0.25mm (40 – 209g/m²) |
| Long document mode | 3000mm max. (Supported by Straight Feeding) |
| Card scanning | 53.9 x 85.5 x 0.76mm (Straight Feeding, Embossed card is supported) |
| Paper separation | Retard Roller Method (Reversing Seperator Roller) |
| Feeder capacity | 30 Sheets (80g/m²) |
Special Features Include
Automatic Page Size Detection, Deskew, 3- Dimentional Colour Correction, Colour Dropout (RGB), Colour Enhancement (Red), Auto Colour Detection, Shading Correction, Text Enhancement, MultiStream, Preset Gamma Curve, Scan Panel, Black Border Removal, Prescan, Image Rotation, Skip Blank Page, Select Scanning Document Side, Folio, Scan Area Setting, Text Orientation, Punch Hole Removal, Continuous Scanning, Edge Enhancement, Moire Reduction, Prevent Bleed Through/Remove Background, Contrast Arrangement, Colour Drift, Background Smoothing, Shadow Cropping, Auto Resolution Setting, Shrinking Arrangement of Sub-Scanning Direction, Job Setting (10 Functions), Double Feed Detection (Ultrasonic Sensor / By Length)
Downloads
Specifications
| Brand | Canon |
|---|---|
| Colour | Colour |
| Paper Size | A4 |
| Max Print Speed | 25 PPM |
| Approx. Monthly Volume | 1500 scans per day |
| Max Paper Capacity | 30 |
| Function | Scan |
